Temperature and Humidity Test Chamber
TCH*V series


TCH*V series Temperature and Humidity Test Chamber

Designed for precision and adaptability, the TCH*V series  temperature and humidity test chamber features an extensive temperature range from -70°C to 150°C. This makes it an ideal choice for rigorous environmental simulation tasks across various industries. With advanced humidity control and a robust build, it ensures consistent and precise testing outcomes, supporting both quality assurance and research and development initiatives effectively. Discover enhanced performance and versatility in temperature and humidity testing with the TCH*V series, exemplifying excellence in environmental simulation technology.

Key Facts

​​

  • Temperature: -70℃~150℃ [-94°F~302°F]

  • Humiditiy: 20% to 98% RH

  • Capacity: 50L, 100L, 250L, 500L, 1000L

  • Customization service

Key Features

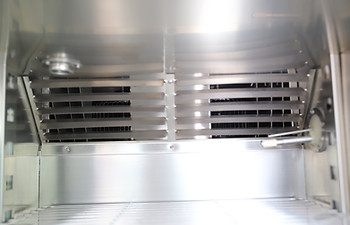

Use high-precision electronic humidity and temperature sensor, no maintenance, precise control.

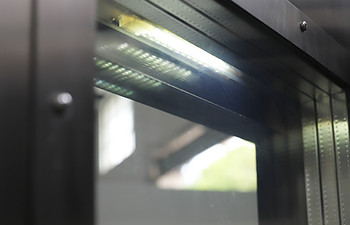

The chamber is equipped with a standard lighting for easy observation

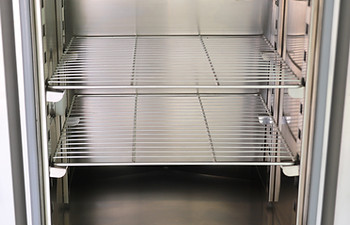

Adjustable stainless steel shelves with

heavy-duty support rails, freely disassembled to facilitate the cleaning.


Standard refrigeration system pressure gauge, convenient for monitoring refrigeration system status

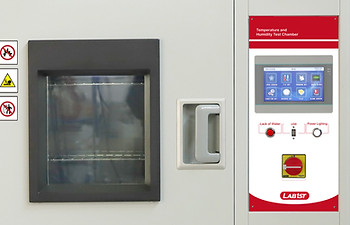

7-inch touch screen with smart PLC program controller

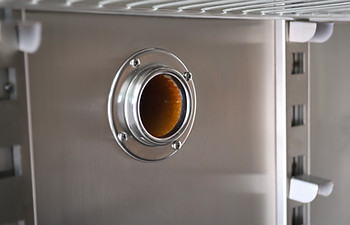

Standard 2-inch cable port for easy power-on testing (position, size and quantity can be customized


Precision Tested, Innovation Proven

Model
TCH50V
TCH100V
TCH225V
TCH500V
TCH1000V
Installed Power
3.5 kW
3.8 kW
5 kW
7 kW
13 kW
Workspace Dimensions [WxDxH]
350*360*400 mm 13.8∗14.2∗15.7 in
500*400*500 mm 19.7∗15.7∗19.7 in
600*500*750 mm 23.6∗19.7∗29.5 in
800*700*900 mm 31.5∗27.6∗35.4 in
1000*1000*1000 mm 39.4∗39.4∗39.4 in
Workspace volume
50L [1.8 cu ft]
100L  [3.5 cu ft]
225L [7.9 cu ft]
500L [17.8 cu ft]
1000L [35.3 cu ft]
Performance
Temperature Fluctuation
±0.5 ℃
Temperature Uniformity
±1 ℃
Heating Rate
3.0-5.0 ℃/min
Cooling Rate
0.7-1.5 ℃/min

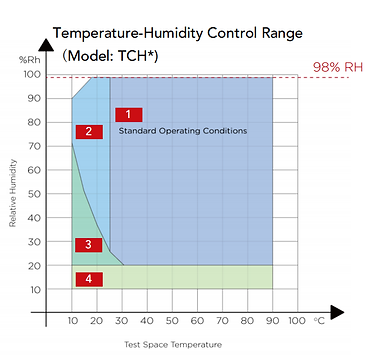

Humidity Range
20%~98% RH
Humidity Fluctuation
±3%
Humidity Uniformity
±2~±3% RH
Chamber Material
SUS304
Shelf
2 pcs [or more], SUS304 wired plates with support
Max. Shelf Load
10 kg [22 lbs]
Cable Port
50 mm [2 inch]
Control Panel
7 inch industrial color touch screen, temperature and humidity program controller
Comminication
USB, RS485 and Ethernet
Compressor Brand
Germany Secop, French Tecumseh, Germany BIitzer, etc.
Cooling Mode
Air-cooled
Humidifier
Heavy duty stainless steel 304 electrical heating humidifier
Temperature Range
-70℃~150℃ [-94°F~302°F], customizable

Machine Magnified - Detailed Angles and Modules
