JSR-B Jacketed Stainless Steel Reactor
The JSR-B is a robust floor-standing jacketed stainless steel reactor, designed for general purpose in laboratory or pilot-scale applications.
Available in sizes from 1L to 150L, it features a range of customizable options including stirrers, motors, volumes, ports, and temperature controls. It delivers high practicality while maintaining competitive pricing, making it an excellent choice for your lab or production needs.
Start with the LAB1ST jacketed stainless steel reactor for a reliable and cost-effective solution!
Key Facts
-
Volume: 1L to 150L
-
Temperature range: RT to 250℃
-
Rotation speed: 0-600rpm
-
Heating: jacketed fluid heating
-
Reaction vessel pressure: -0.1～0.6Mpa
Features

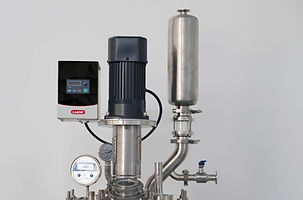

A digital display for temperature and stirring speed, offering convenient and intuitive operation.
Meticulous welding and polishing technique for extended durability
High torque motor, suitable for materials with a high viscosity
A great variety of customized options are available including motors, stirrers and more.

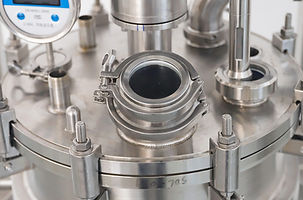

Equipped with sight glasses on the lid for a clear view of the reaction
Turnkey solution including pumps and temperature controlling units is available
Model | JSR-1B | JSR-2B | JSR-3B | JSB-5B | JSR-10B | JSR-20B | JSR-30B |
|---|---|---|---|---|---|---|---|
Material | SUS304 | ||||||
Heat exchange surface | 0.16㎡ | 0.16㎡ | 0.16㎡ | 0.16㎡ | 0.16㎡ | 0.16㎡ | 0.33㎡ |
Condenser | |||||||
Cooling/heating jacket volume | 1L | 2L | 2.5L | 3.5L | 5L | 10L | 12L |
Volume | 1L | 2L | 3L | 5L | 10L | 20L | 30L |
Title | Text |
|---|---|
Electrical requirements | 220V; 50/60Hz |
Reaction vessel pressure | -0.1～0.6 |
Material | SUS304 |
Stirring speed | 0 to 600rpm |
Vacuum sealing | Mechanical sealing |
Heating method | Jacket circulating heating |
Temperature range | RT—200℃ |
Model | JSR-50B | JSR-100B | JSR-150B |
|---|---|---|---|
Heat exchange surface | 0.33㎡ | 0.33㎡ | 0.8㎡ |
Condenser | |||
Electrical requirements | 220V; 50/60Hz | ||
Reaction vessel pressure | -0.1～0.6 | ||
Cooling/heating jacket volume | 30L | 58L | 65L |
Heating method | Jacket circulating heating | ||
Vacuum sealing | Mechanical sealing | ||
Stirring speed | 0 to 600rpm | ||
Material | SUS304 | ||
Temperature range | RT—200℃ | ||
Material | SUS304 | ||
Volume | 50L | 100L | 150L |
